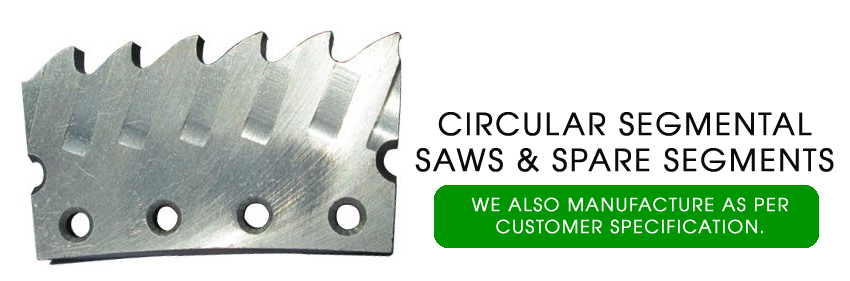

Circular Segmental Saws & Spare Segments
Segmental circular saw blades consist of a chrome vanadium steel body, with hardened toothed segments rivited to the periphery. This construction makes it possible to repair a segmental saw blade after heavy tooth or segment damage, by simply replacing one or more segments. We produce segmental circular saw blades in diameters from 250 mm to 1610 mm.
Product Specification
|
Diameter |
|||
| mm | Inches | No. of Segments per Saw | Nominal Cutting Width |
| 250 | 10″ | 10 | 0.135″ |
| 275 | 11″ | 10 | 0.156″ |
| 315 | 12″ | 14 | 0.175″ |
| 360 | 14″ | 15 | 0.200″ |
| 385 | 15″ | 15 | 0.200″ |
| 410 | 16″ | 18 | 0.200″ |
| 460 | 18″ | 18 | 0.230″ |
| 510 | 20″ | 18 | 0.230″ |
| 560 | 22″ | 18 | 0.230″ |
| 610 | 24″ | 20 | 0.245″ |
| 660 | 26″ | 20 | 0.245″ |
| 710 | 28″ | 24 | 0.245″ |
| 760 | 30″ | 24 | 0.245″ |
| 810 | 32″ | 24 | 0.260″ |
| 860 | 34″ | 24 | 0.260″ |
| 860 | 34″ | 30 | 0.260″ |
| 910 | 36″ | 30 | 0.260″ |
| 918 | 36″ | 30 | 0.280″ |
| 965 | 38″ | 30 | 0.335″ |
| 1010 | 40″ | 30 | 0.335″ |
| 1068 | 42″ | 30 | 0.335″ |
| 1118 | 44″ | 30 | 0.335″ |
| 1220 | 48″ | 36 | 0.370″ |
| 1376 | 54″ | 36 | 0.425″ |
| 1430 | 56″ | 36 | 0.425″ |
| 1530 | 60″ | 36 | 0.460″ |
